Hydraulic Surface Grinding Machine

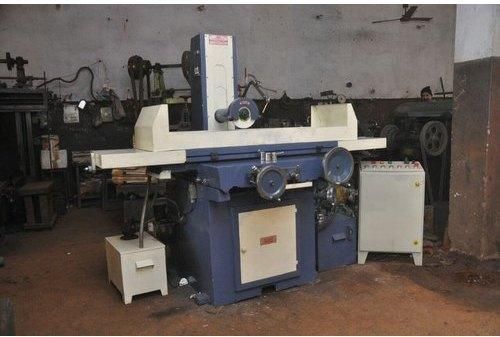

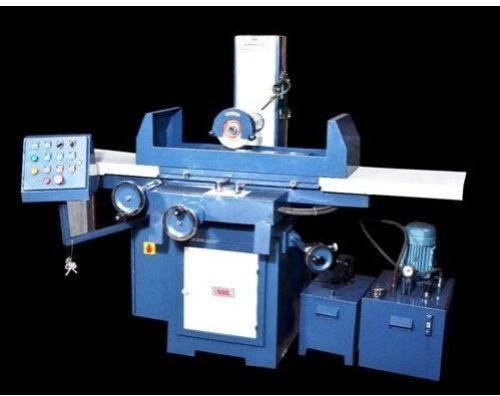

Leading Manufacturers and Exporters of 3 Phase Hydraulic Surface Grinding Machine, Automatic Hydraulic Surface Grinding Machine, Cast Iron Hydraulic Surface Grinding Machine, Horizontal Hydraulic Surface Grinding Machine, SM-1224 Hydraulic Surface Grinding Machine and SMT Hydraulic Surface Grinding Machine from Faridabad.
| Business Type | Manufacturer, Exporter |
| Brand | SMT |
| Grinding Wheel Size | 200X20X31.75mm |
| Spindle Speed | 28000RPM |
| Material | Graded Cast Iron |
| Electrical Motor | 1.5HP 3 Phase |
| Diamond Dressor | 0.5CR |
| Magnetic Chuck Recommended | 300X600mm |
| Cross Feed Graduation | 0.05mm |
| Vertical Feed Graduation With Micro Feed | 0.002mm |
| Vertical Feed Graduation | 0.01mm |
| Maximum Height From The Table To Grinding Wheel | 375mm |
| Working Sirface Of The Table | 375X750mm |
| Business Type | Manufacturer, Exporter |
| Automatic Grade | Automatic |
| Model Name/number | Smt 1224 Automatic |
| Grinding Wheel Size | 200X13X31.75mm |
| Spindle Speed | 2800RPM |
| Cross Feed Graduation | 0.05mm |
| Material | Graded Cast Iron |
| Brand | SMT |
| Working Sirface Of The Table | 300X600mm |
| Maximum Height From The Table To Grinding Wheel | 300mm |
| Vertical Feed Graduation | 0.01mm |
| Vertical Feed Graduation With Micro Feed | 0.002mm |
| Diamond Dressor | 0.5CR |
| Electrical Motor | 1.5HP 3 Phase |
| Magnetic Chuck Recommended | 250x600mm |
| Business Type | Manufacturer, Exporter |
| Grinding Wheel Size | 200X50X31.75mm |
| Spindle Speed | 2800/1400RPM |
| Material | Graded Cast Iron |
| Brand | SMT |
| Electrical Motor | 1.5HP 3 Phase |
| Diamond Dressor | 0.5CR |
| Magnetic Chuck Recommended | 300X800mm |
| Cross Feed Graduation | 0.05mm |
| Vertical Feed Graduation With Micro Feed | 0.002mm |
| Vertical Feed Graduation | 0.01mm |
| Maximum Height From The Table To Grinding Wheel | 400mm |
| Working Sirface Of The Table | 400X1000mm |
| Business Type | Manufacturer, Exporter |
| Grinding Wheel Size | 200X20X31.75mm |
| Spindle Speed | 2800RPM |
| Material | Graded Cast Iron |
| Brand | SMT |
| Electrical Motor | 2 HP 3 Phase |
| Diamond Dressor | 0.5CR |
| Magnetic Chuck Recommended | 250X600mm |
| Cross Feed Graduation | 0.05mm |
| Vertical Feed Graduation With Micro Feed | 0.002mm |
| Vertical Feed Graduation | 0.01mm |
| Maximum Height From The Table To Grinding Wheel | 300mm |
| Working Sirface Of The Table | 300X600mm |
| Business Type | Manufacturer, Exporter |
| Brand | SMT |
| Type of Grinding Machine | Surface |
| Model Name/Number | SM-1224 |
| Material | Graded Cast Iron |
| Cross Feed Graduation | 0.05mm |
| Spindle Speed | 2800RPM |
| Grinding Wheel Size | 200X13X31.75mm |
| Electrical Motor | 0.75KW / 1HP 3 Phase |
| Diamond Dressor | 0.5CR |
| Magnetic Chuck Recommended | 200X300mm |
| Vertical Feed Graduation With Micro Feed | 0.002mm |
| Vertical Feed Graduation | 0.01mm |
| Maximum Height From The Table To Grinding Wheel | 250mm |
| Working Sirface Of The Table | 300*600 |
| Business Type | Manufacturer, Exporter |
| Model Name/Number | SM-1530H |
| Grinding Wheel Size | 200X20X31.75mm |
| Spindle Speed | 2800RPM |
| Material | Graded Cast Iron |
| Brand | SMT |
| Electrical Motor | 1.5KW / 2HP 3 Phase |
| Diamond Dressor | 0.5CR |
| Magnetic Chuck Recommended | 300X750mm |
| Cross Feed Graduation | 0.05mm |
| Vertical Feed Graduation With Micro Feed | 0.002mm |
| Vertical Feed Graduation | 0.01mm |
| Maximum Height From The Table To Grinding Wheel | 250mm |
| Working Surface Of The Table | 375X750mm |
